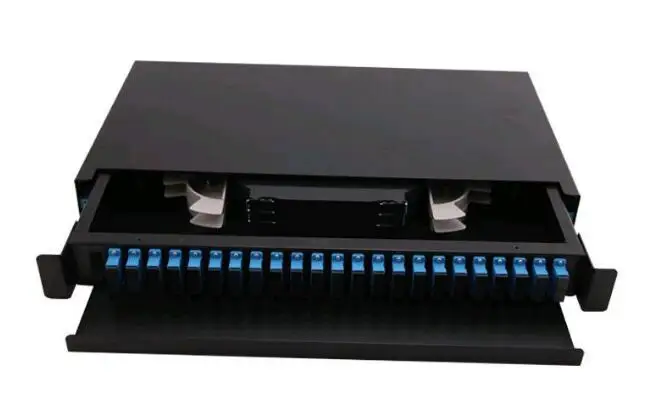

19 inch rack mounted fiber optic patch panel

Product Description

Fiber  optic patch panel ,Fiber optic distribution frame, fiber optic  distribution Box, ODF ,fiber optic Indoor wall box, Fiber optic Outdoor  wall box,Optical Terminal Box (OTB) is mainly used for connecting the  indoor/outdoor optical cables, optical patch cords and optical pigtails.

Main Features

• Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation.

• The box are Rack Mounted, which is convenient to install and dismantle;

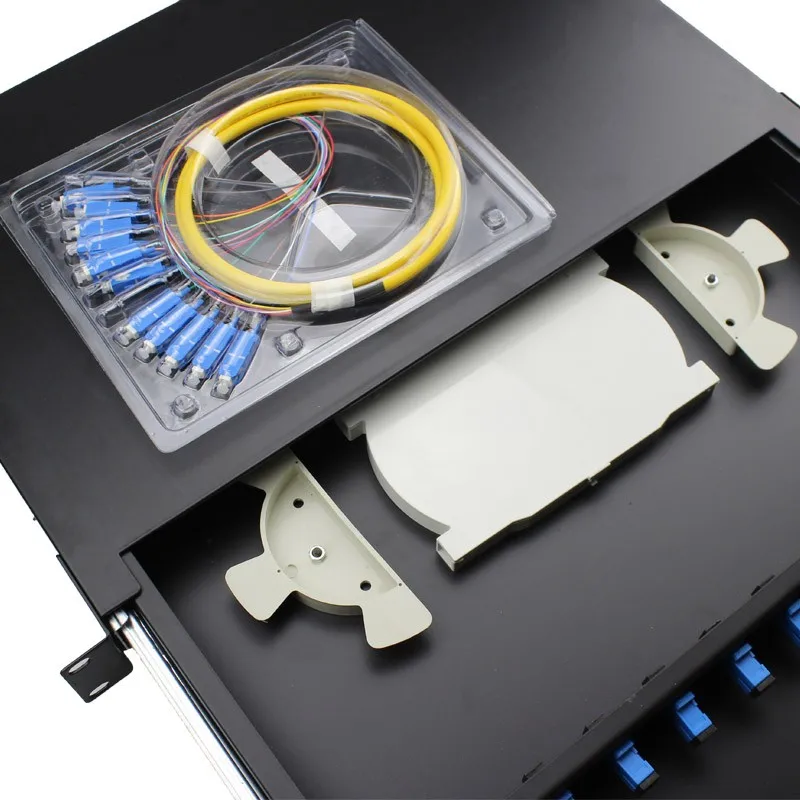

• The splice tray could be piled one upon another, flexible to turn;

• The curve radius of the coiled spear fibers should be guaranteed to be over 37.5mm in the splice tray;

• The box is of unique structure, reasonable layout, and has adequate room for operation;

• Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are clamp tightly;

• The indoor type is of excellent seal performance, which could prevent water from entering effectively;

Types

•               Rack-mount fixed type

•             Rack-mount drawer type

•             Rack mount ODF

•             indoor wall-mount type

•             Outdoor waterproof wall-mount typ

Properties

• Suitable for the protective connection between cables and pigtails

• Suitable for the connection between optical cables and optical communication device

• unique structure, easy installation, for indoor use




Classification

Rack Mount, Wall Mount. Suitable for FC adapter,ST adapter,SC adapter, LC adapter etc.

• capacity: 12,24,32,48,64,72,96 splices

• 19 inches; 1U for 12 splices, 24 splices,2U installation for 32 splices, 48 splices, and 3U for 64, 72 & 96 splices.

• Adapters installed: FC adapter ,ST adapter,SC adapter, LC adapter etc

• Suitable for ribbon and bunchy fiber cable

Specification
